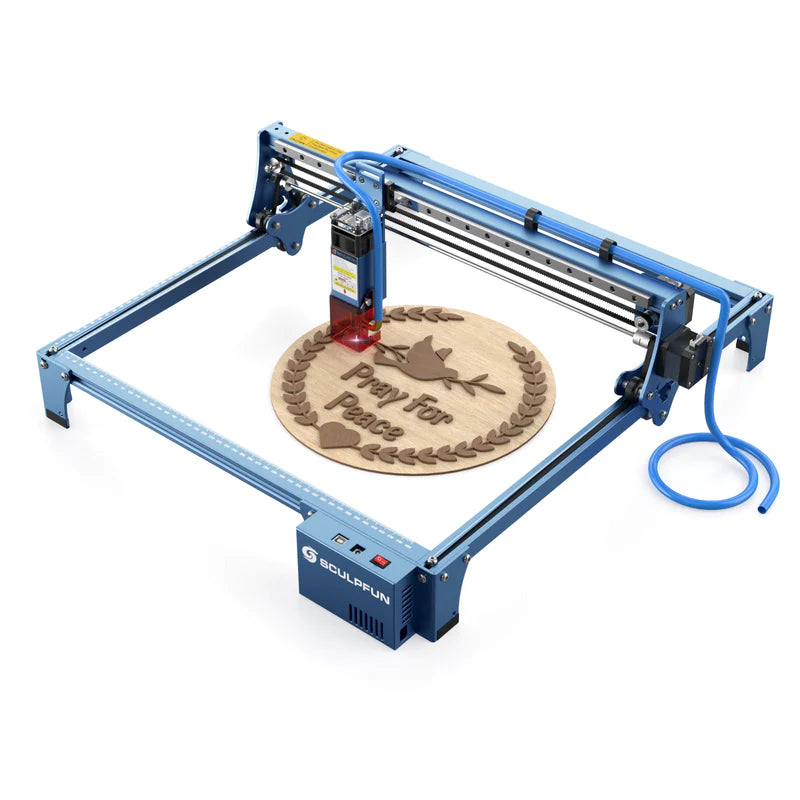

Sculpfun S10 10W Laser Cutter & Engraver

Powerful high-speed air assist
S10 is equipped with a high-speed air assist nozzle. The difference between this nozzle is that it has an advanced fluid mechanics design to utilize the air pressure better. When using the same air compressor, the S10 sprays airflow faster. For example, when using a 30L/min, 0.03Mpa air compressor, the S10 nozzle will spray high-speed airflow up to 14.5m/s. This will greatly improve the cutting penetration and cutting efficiency.

Ultra-thin high density 10W laser beam shaping technology
The S10 laser output power is increased to 10W, which is twice that of the S9. But S10 obtains the same ultra-thin laser beam with 0.08mm focus as S9, which means S10 has higher energy density, stronger cutting penetration, and engraving capabilities.

Faster, stronger, cleaner
Combining advanced high-speed air-assist and 10W high-density laser, S10 shows comparable to industrial-grade wood cutting performance: First, the cutting efficiency is greatly improved, cut faster; Second, the cutting penetration is more substantial, and many high-density kinds of wood can be cut; Third, the cutting surface is cleaner, the powerful airflow blows away the residue, so that there is no stain on the surface of the cutting object.

Industrial-grade cutting accuracy
S10 adopts industrial high-precision linear slide rail X-axis, which makes it get industrial-grade engraving accuracy. When comparing the small engraving details, S10 does not have the wave lines that other ordinary engraving machines appear.

More advanced and upgradable 32-bit motherboard
The S10 motherboard uses 32-bit chips, with faster computing speed, and it still reserves Z-axis and limits switch functions to facilitate people to upgrade the engraving machine. It still perfectly supports laser cutting software like Lightburn and LaserGRBL.

Expandable engraving area
S10 keeps a Y-axis expandable design like S9, the original engraving area is about 400x400mm, but you can buy an S10 Y-axis extension kit to expand the engraving area to 400X950mm, which can help you get 230% of the engraving area at a meager price. This can help you better deal with large-area engraving or cutting work.

Adjustable laser eye shield
The S10 laser is equipped with a detachable eye shield, which will not dazzle even without glasses. And if you don't need it, you can easily disassemble the eye shield.

Safe design
There is a very safe and eye-catching power switch on the machine, you can directly and quickly turn off the power in an emergency. The all-metal body makes the machine very sturdy and durable.

A4 steel pad
The free A4 size steel pad can protect the table from laser damage. Isolate fire hazards.

Square measuring ruler
The X-axis and Y-axis contain precise scale lines, which is convenient for you to measure the size of engraving objects quickly. The 400x400mm large-area engraving interval can meet your various engraving needs.
